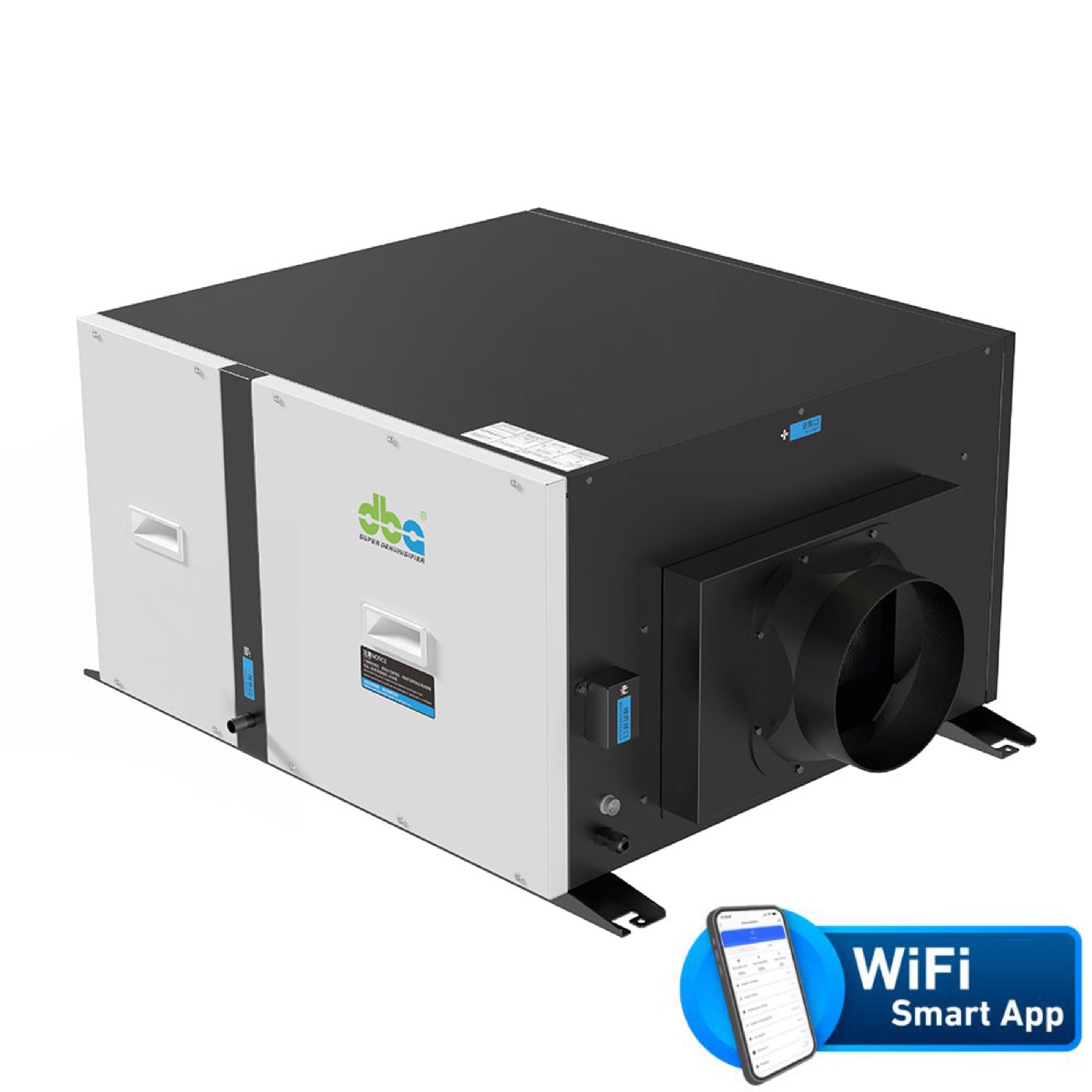

Commercial Ceiling 145 L/day
DBA-GEC145LD-HP
High-output ducted ceiling for large commercial spaces
Commercial Industrial
About this unit
A high-output ducted ceiling unit handling 145L per day, built for larger commercial floors and light industrial spaces. RS485 Modbus standard; WiFi optional. Covers 1,500–1,700 sq ft from a single ceiling install.
Highlights
- 145 L/day at 30°C 80%RH — 85 L/day at 26.7°C 60%RH
- 1005 × 695 × 440 mm (W×D×H), 70 kg
- 50 dB(A) noise level, 1,200 CMH airflow
- Built-in pump: 1.2m lift / 1.8m drain height
- 1,500–1,700 sq ft coverage
- RS485 Modbus standard; WiFi app optional
- Built-in UV-C sterilisation light
- 1,520W rated / 2,220W max · R410A/1.2 kg refrigerant
Full specifications
| Model | DBA-GEC145LD-HP |
|---|---|
| Dehumidifying Capacity(30℃ 80%RH) | 145L/Day |
| Dehumidifying Capacity(26.7℃ 60%RH) | 85L/Day |
| Cover Area | 1500-1700sqft |
| Air Flow | 1200m³/hr |
| Noise Level | 50dB |
| Voltage | 220-240V / 50hz |
| Rated Power | 1520W |
| Max. Power | 2220W |
| Rated Current | 7.1A |
| Max. Current | 11.3A |
| Refrigerant | R410A/1200g |
| Operational Temperature | 5-40℃ |
| Air Outlet Size | ⌀196mm |
| Air Inlet Size | ⌀146mm x 2 |
| Pump Max. Head | 1.2m |
| Weight | 70kg |
| Dimension | L1005 × W695 × H440mm |
Interested in the DBA-GEC145LD-HP?
Get a no-obligation quote. We'll confirm sizing, ducting options and pricing for your space.
Enquire on WhatsApp Call +65 6772 9962 info@drytech.sg
Free download
Commercial Ceiling Series Catalog
Full specifications, dimensions, installation drawings and performance data for the complete Commercial Ceiling range — including the DBA-GEC145LD-HP.
