Commercial Ceiling 280 L/day
DBA-GEC280LD
Heavy-duty 3-phase ceiling unit, 280L/day
Industrial
About this unit

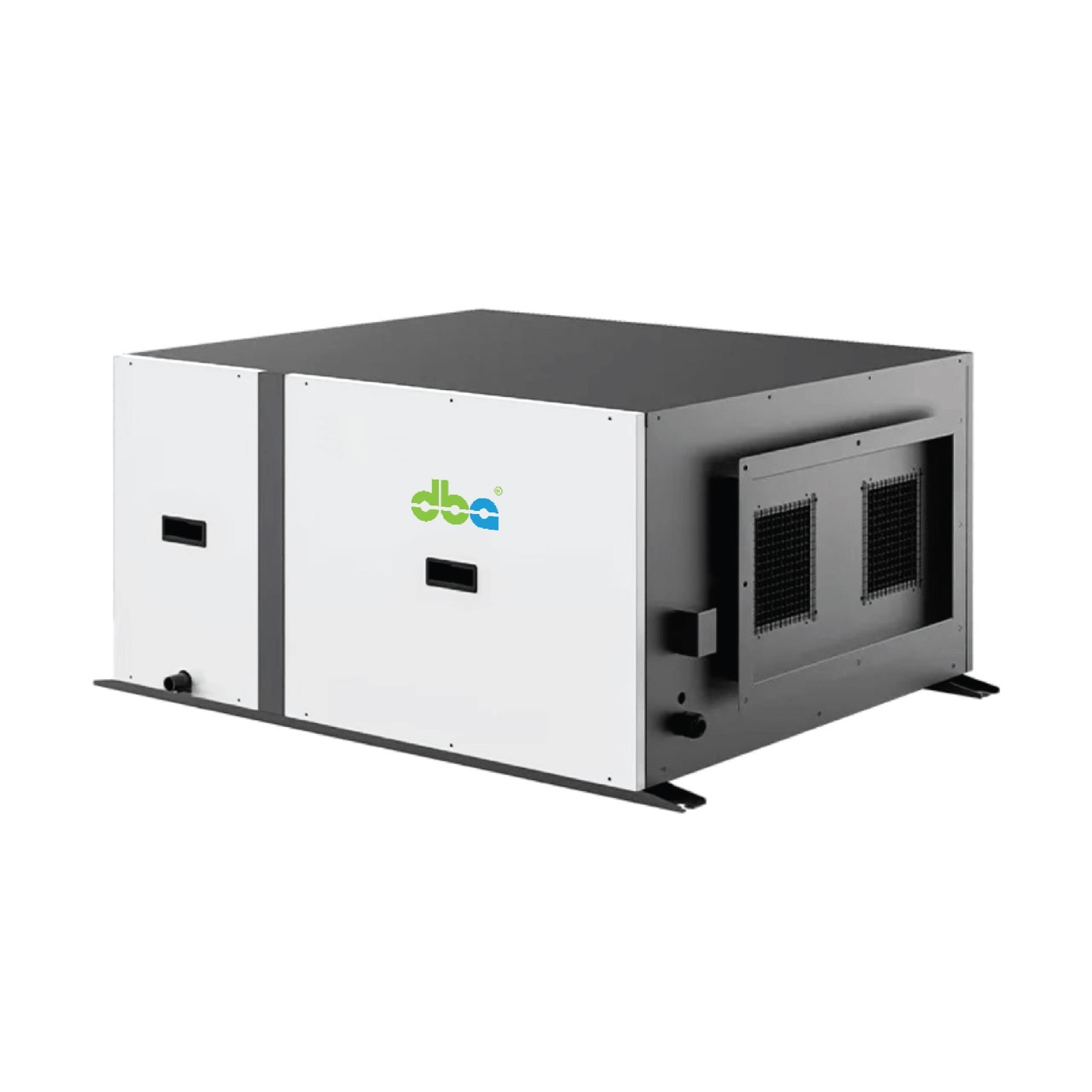

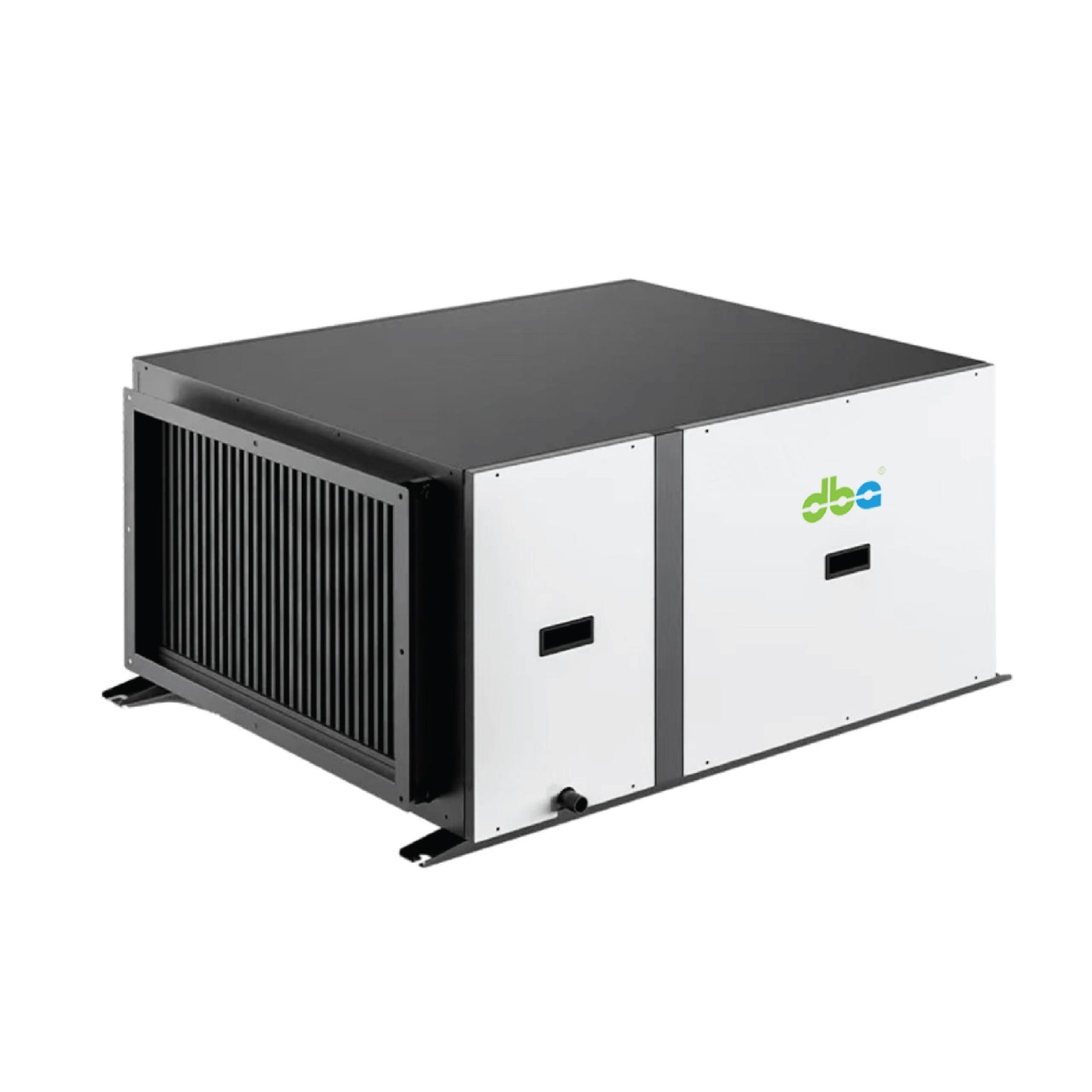

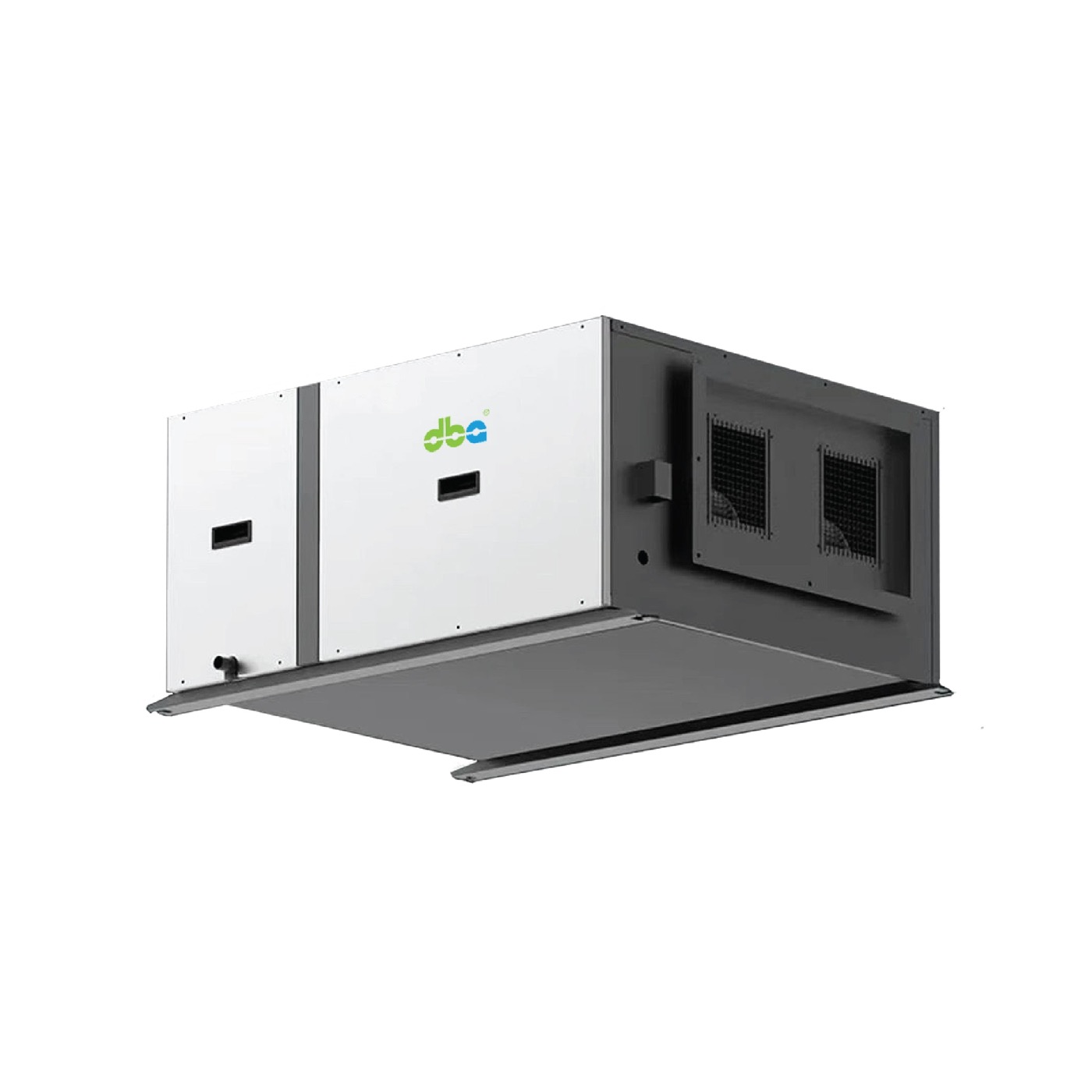

Heavy-duty 3-phase ceiling dehumidifier removing 280L per day. Built for large commercial and light-industrial environments — a single ceiling unit managing significant moisture loads across 2,500–3,000 sq ft.
Highlights
- 280 L/day at 30°C 80%RH — 132 L/day at 26.7°C 60%RH
- 1137 × 900 × 540 mm (W×D×H), 108 kg
- 58 dB(A) noise level, 1,700 CMH airflow
- 2,500–3,000 sq ft coverage
- RS485 Modbus standard; WiFi optional
- 3-phase 380V · 2,580W rated / 3,510W max
- R410A/1.9 kg refrigerant
Full specifications
| Model | DBA-GEC280LD |
|---|---|
| Dehumidifying Capacity(30℃ 80%RH) | 280L/Day |
| Dehumidifying Capacity(26.7℃ 60%RH) | 132L/Day |
| Cover Area | 2500-3000sqft |
| Air Flow | 1700m³/hr |
| Noise Level | 58dB |
| Voltage | 380V 3N / 50Hz |
| Rated Power | 2580W |
| Max. Power | 3510W |
| Rated Current | 5.8A |
| Max. Current | 7.2A |
| Refrigerant | R410A/1.9kg |
| Operational Temperature | 5-40℃ |
| Air Outlet Size | 530x290mm |
| Air Inlet Size | 670x390mm |
| Weight | 108kg |
| Dimension | L1137 × W900 × H540mm |
Interested in the DBA-GEC280LD?
Get a no-obligation quote. We'll confirm sizing, ducting options and pricing for your space.
Enquire on WhatsApp Call +65 6772 9962 info@drytech.sg
Free download
Commercial Ceiling Series Catalog
Full specifications, dimensions, installation drawings and performance data for the complete Commercial Ceiling range — including the DBA-GEC280LD.
