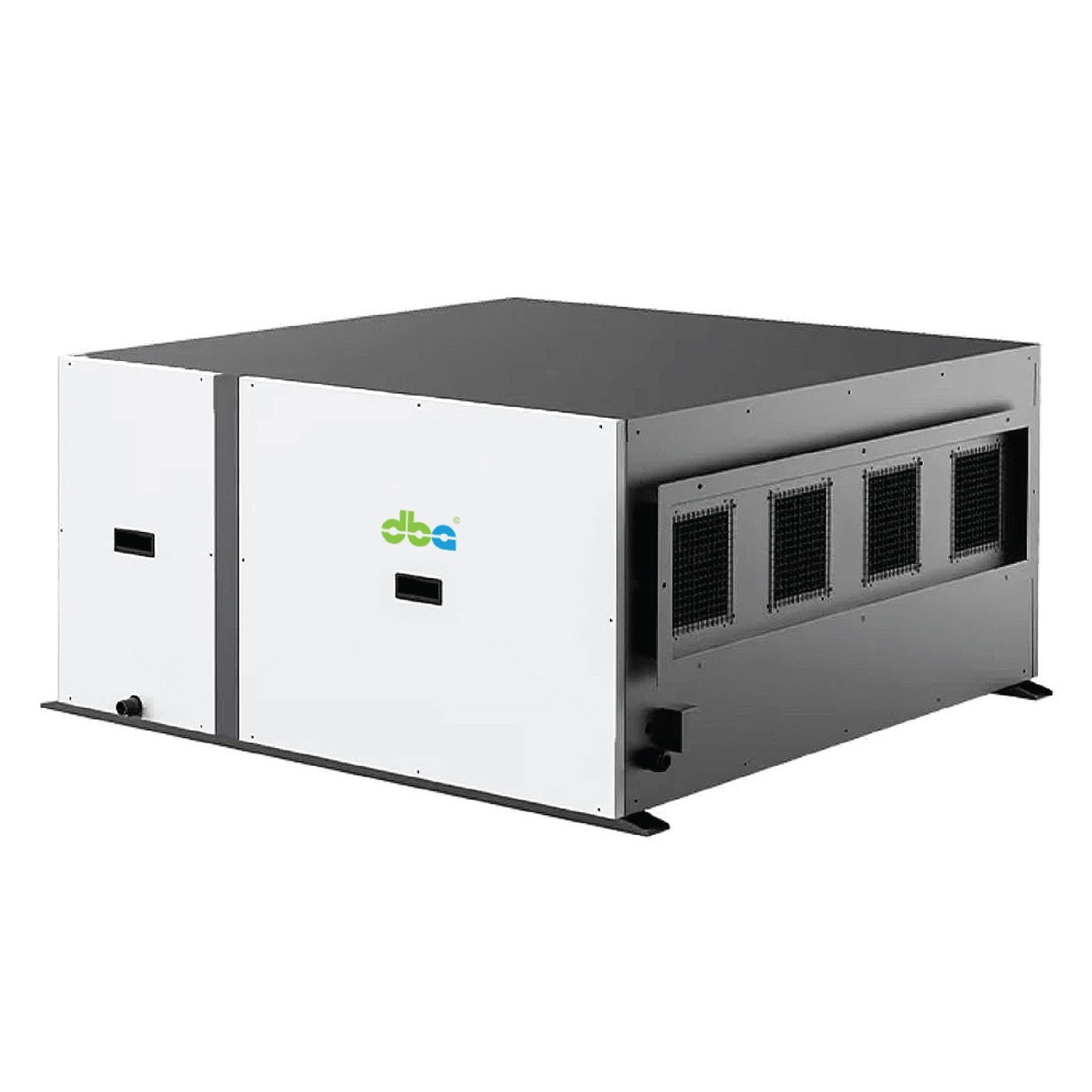

Commercial Ceiling 550 L/day
DBA-GEC550LD
Ultra-high-capacity industrial ceiling unit
Industrial
About this unit
The most powerful unit in the DBA ceiling range, removing 550L per day across 4,000–5,000 sq ft. Two R410A circuits running on 3-phase 380V — built for the highest-humidity industrial environments.
Highlights
- 550 L/day at 30°C 80%RH — 276 L/day at 26.7°C 60%RH
- 1270 × 1200 × 605 mm (W×D×H), 240 kg
- 65 dB(A) noise level, 3,250 CMH airflow
- 4,000–5,000 sq ft coverage
- RS485 Modbus standard; WiFi optional
- 3-phase 380V · 4,900W rated / 6,550W max
- R410A/2.2 kg × 2 refrigerant
Full specifications
| Model | DBA-GEC550LD |
|---|---|
| Dehumidifying Capacity(30℃ 80%RH) | 550L/Day |
| Dehumidifying Capacity(26.7℃ 60%RH) | 276L/Day |
| Cover Area | 4000-5000sqft |
| Air Flow | 3250m³/hr |
| Noise Level | 65dB |
| Voltage | 380V 3N / 50Hz |
| Rated Power | 4900W |
| Max. Power | 6550W |
| Rated Current | 12.5A |
| Max. Current | 15.0A |
| Refrigerant | R410A/2.2kg x 2 |
| Operational Temperature | 5-40℃ |
| Air Outlet Size | 985x228mm |
| Air Inlet Size | 965x430mm |
| Weight | 240kg |
| Dimension | L1270 × W1200 × H605mm |
Interested in the DBA-GEC550LD?
Get a no-obligation quote. We'll confirm sizing, ducting options and pricing for your space.
Enquire on WhatsApp Call +65 6772 9962 info@drytech.sg
Free download
Commercial Ceiling Series Catalog
Full specifications, dimensions, installation drawings and performance data for the complete Commercial Ceiling range — including the DBA-GEC550LD.
