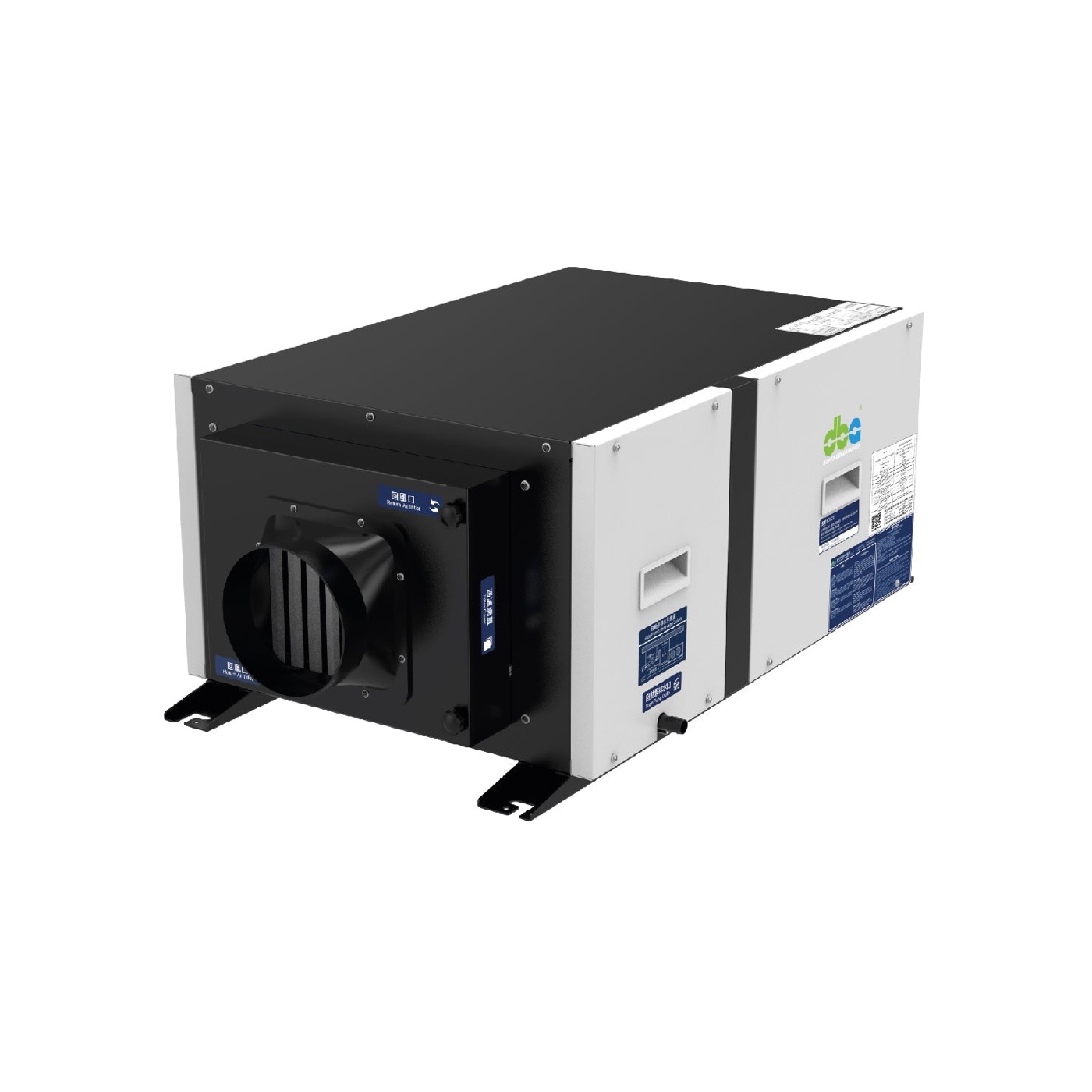

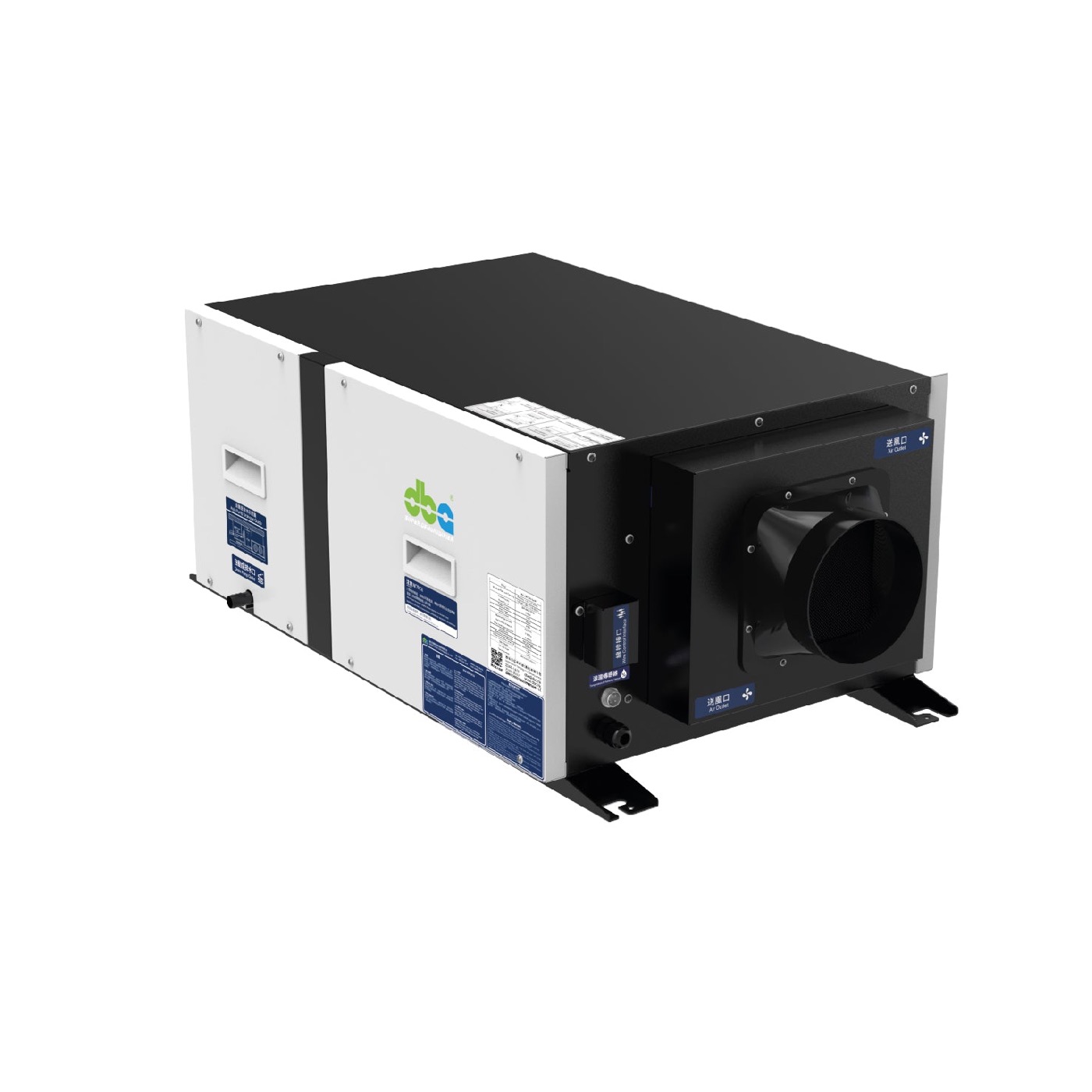

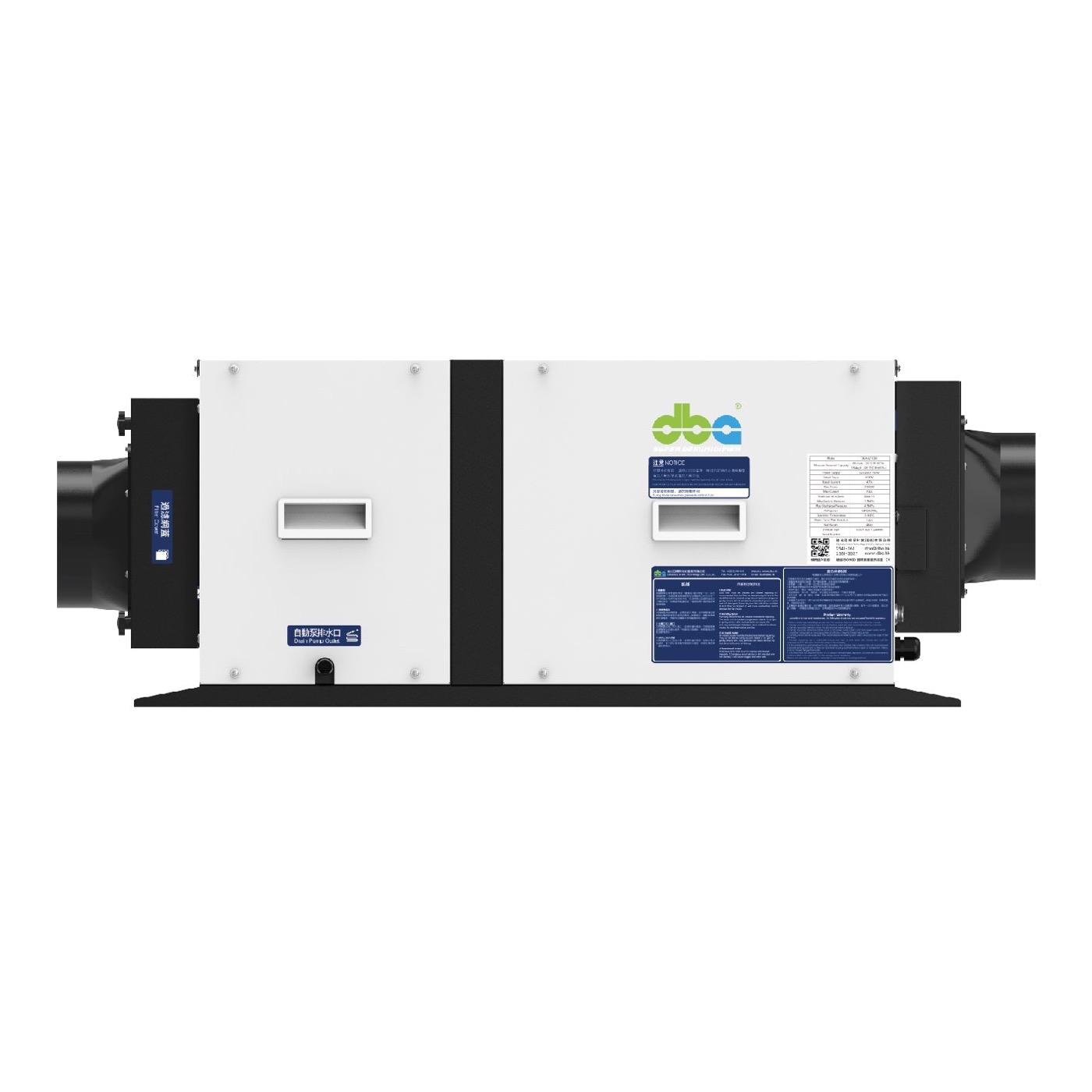

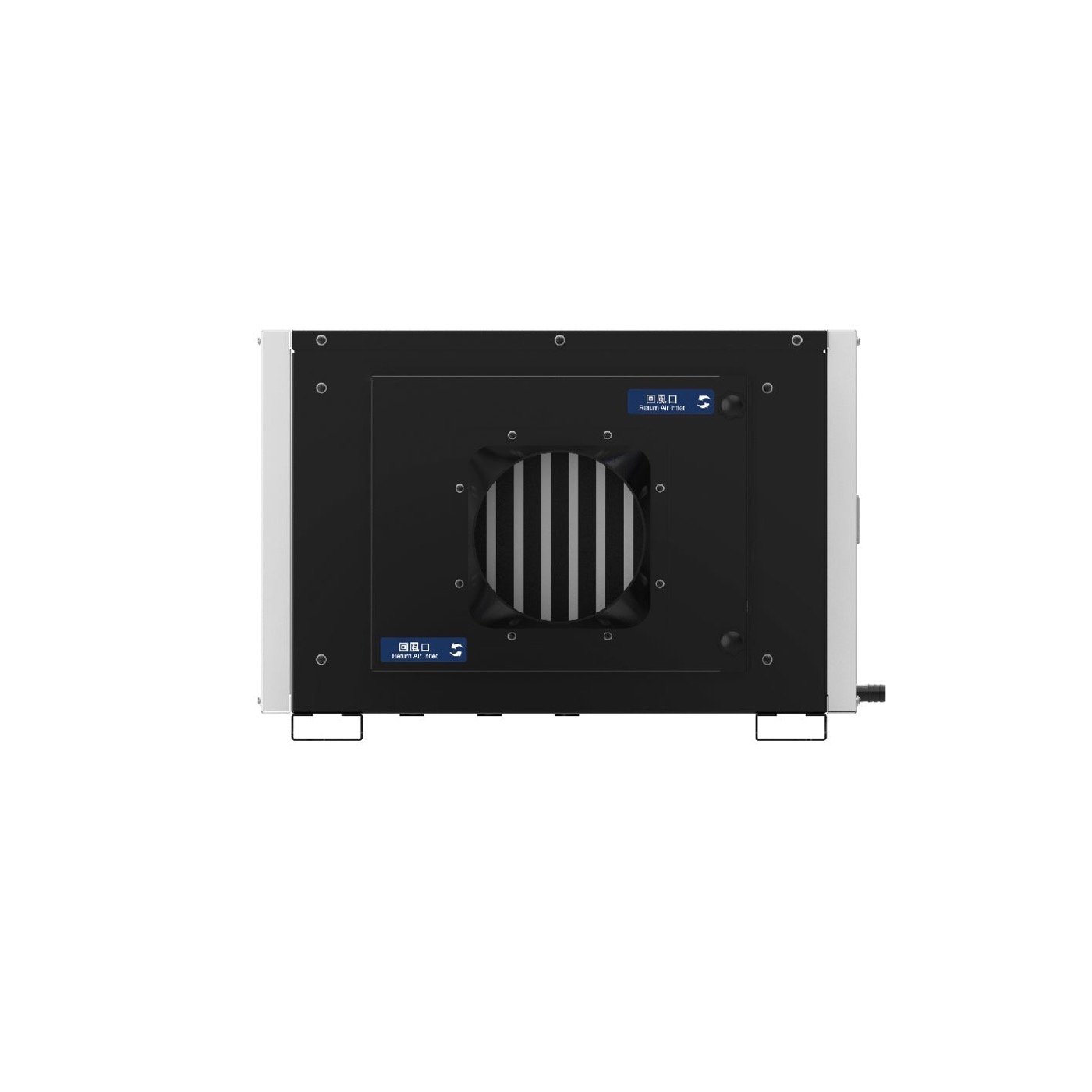

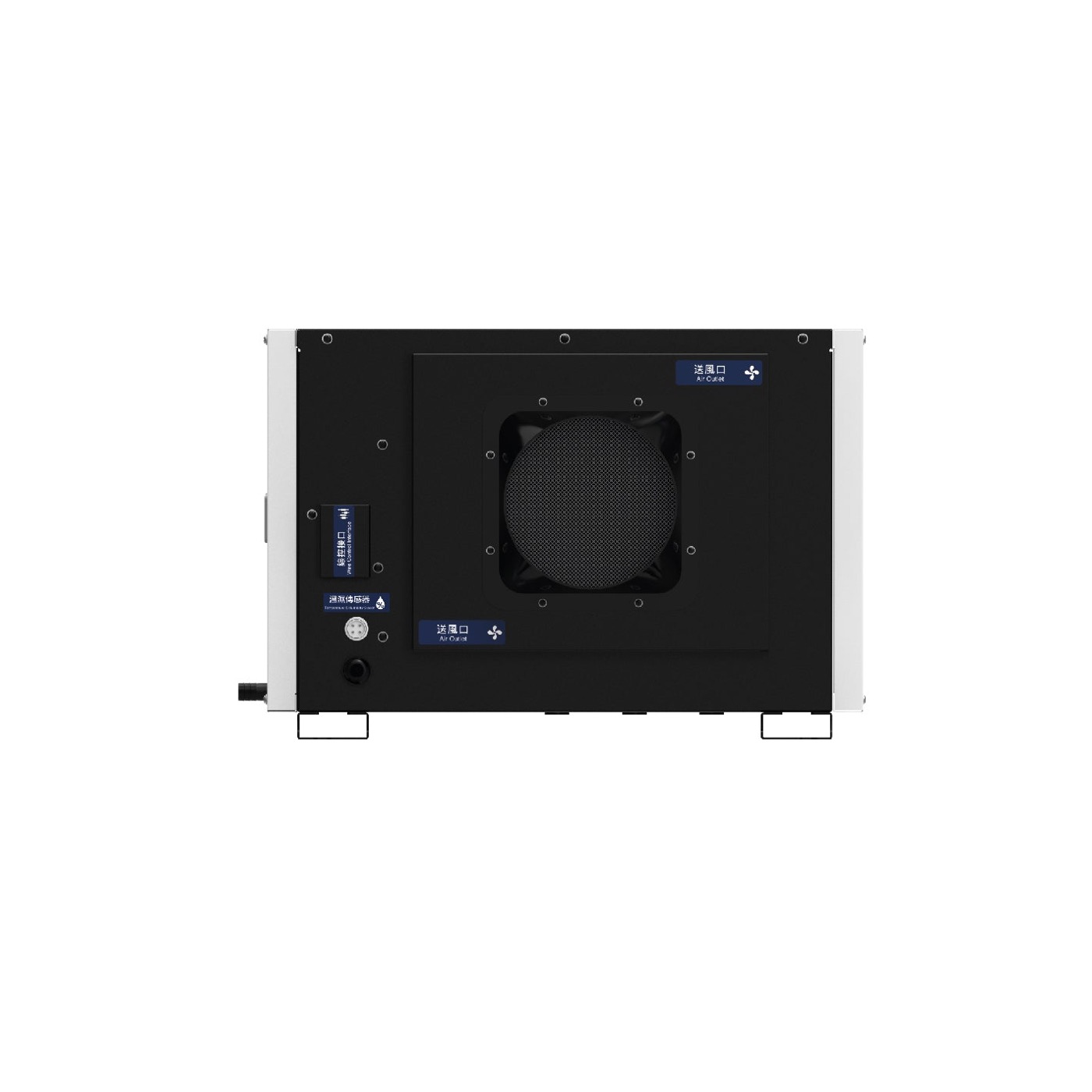

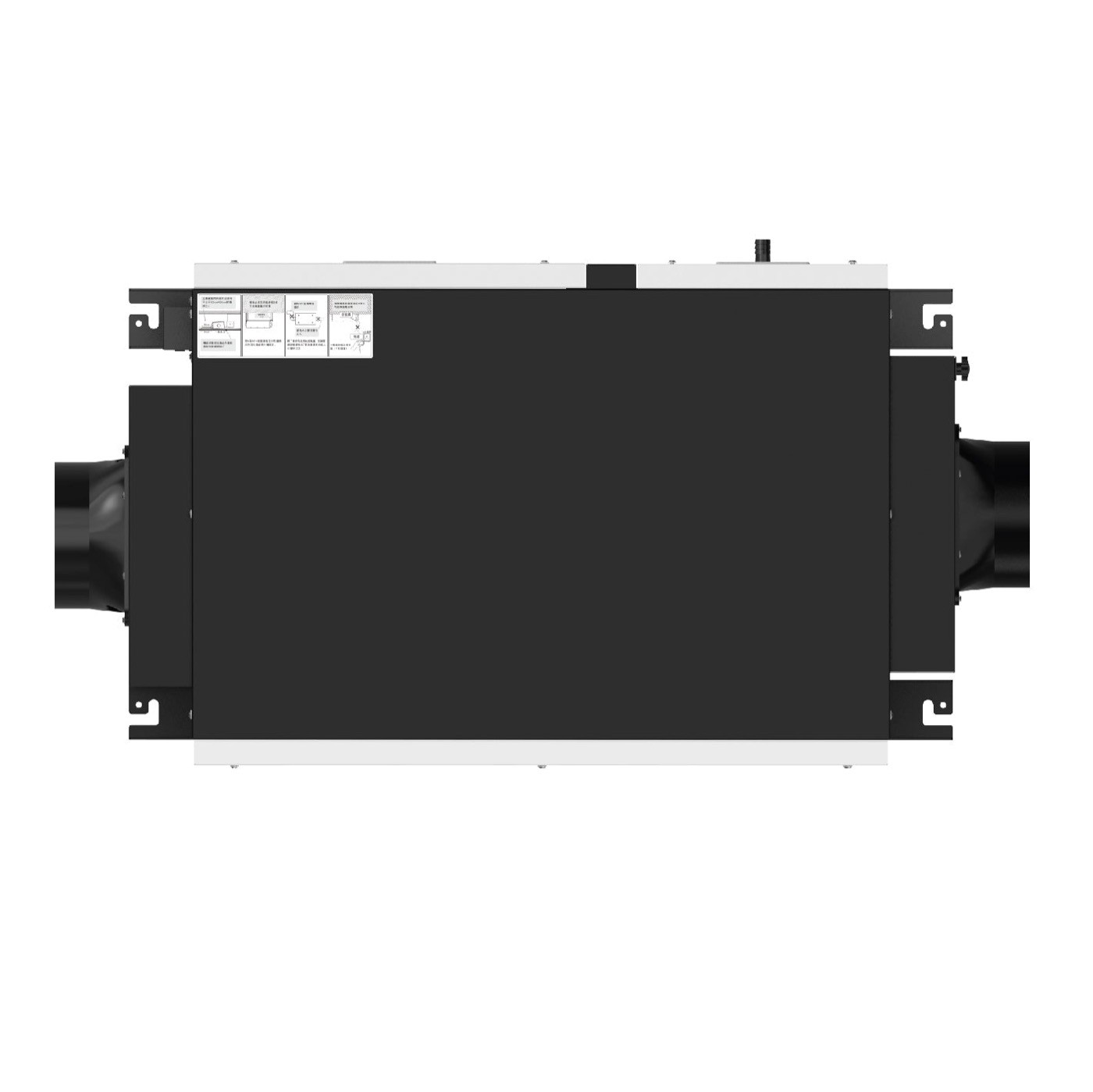

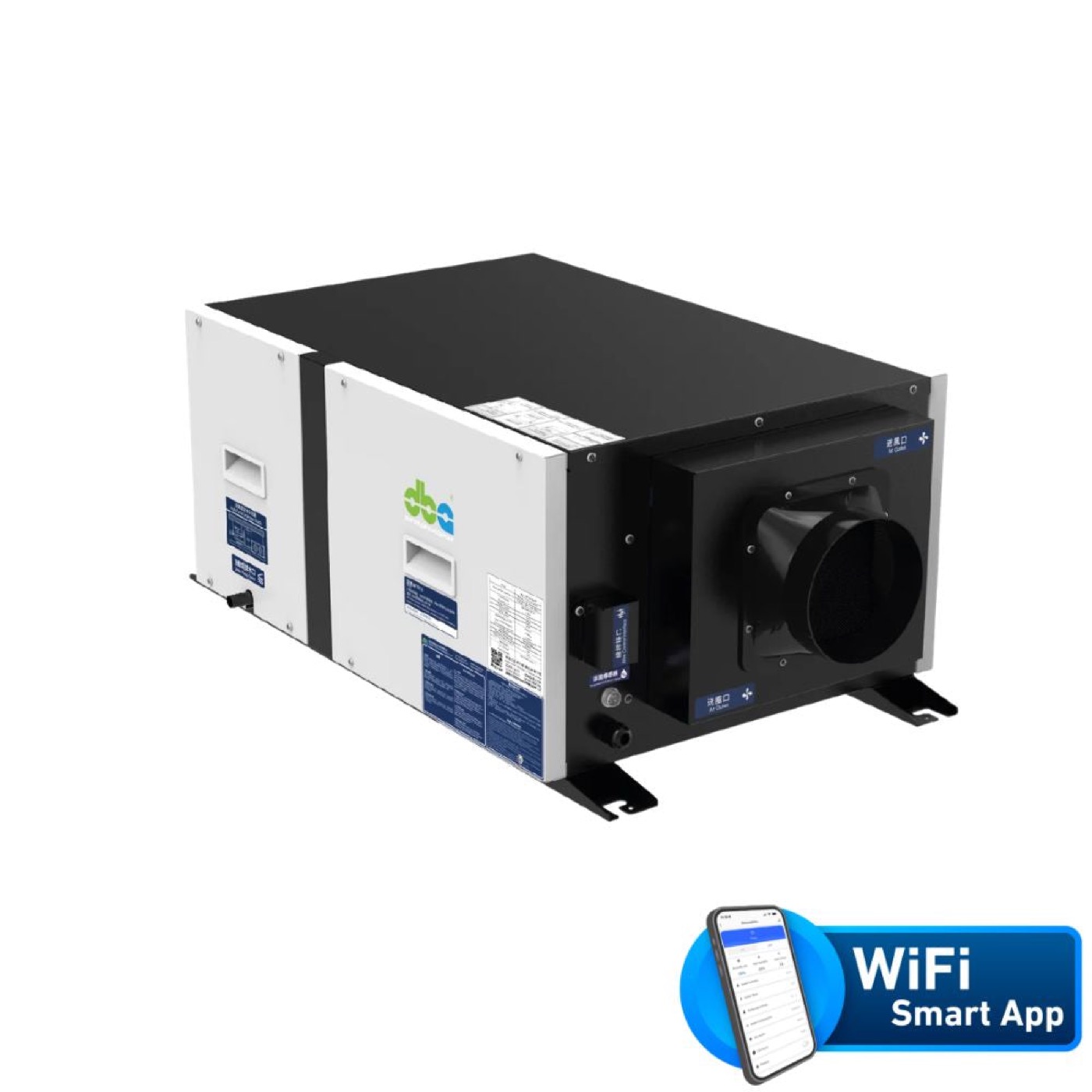

Commercial Ceiling 68 L/day
DBA-GEC68LD-HP
Ducted commercial ceiling unit with built-in pump
Commercial
About this unit
Ducted commercial ceiling dehumidifier for concealed, whole-space humidity control. The GEC68LD-HP delivers 68L/day with a 1.2m built-in condensate pump and connects to RS485 Modbus or WiFi for smart building integration.
Highlights
- 68 L/day at 30°C 80%RH — 33 L/day at 26.7°C 60%RH
- 970 × 525 × 345 mm (W×D×H), 44 kg
- 49 dB(A) noise level, 500 CMH airflow
- Built-in pump: 1.2m lift / 1.8m drain height
- 800–1,000 sq ft coverage

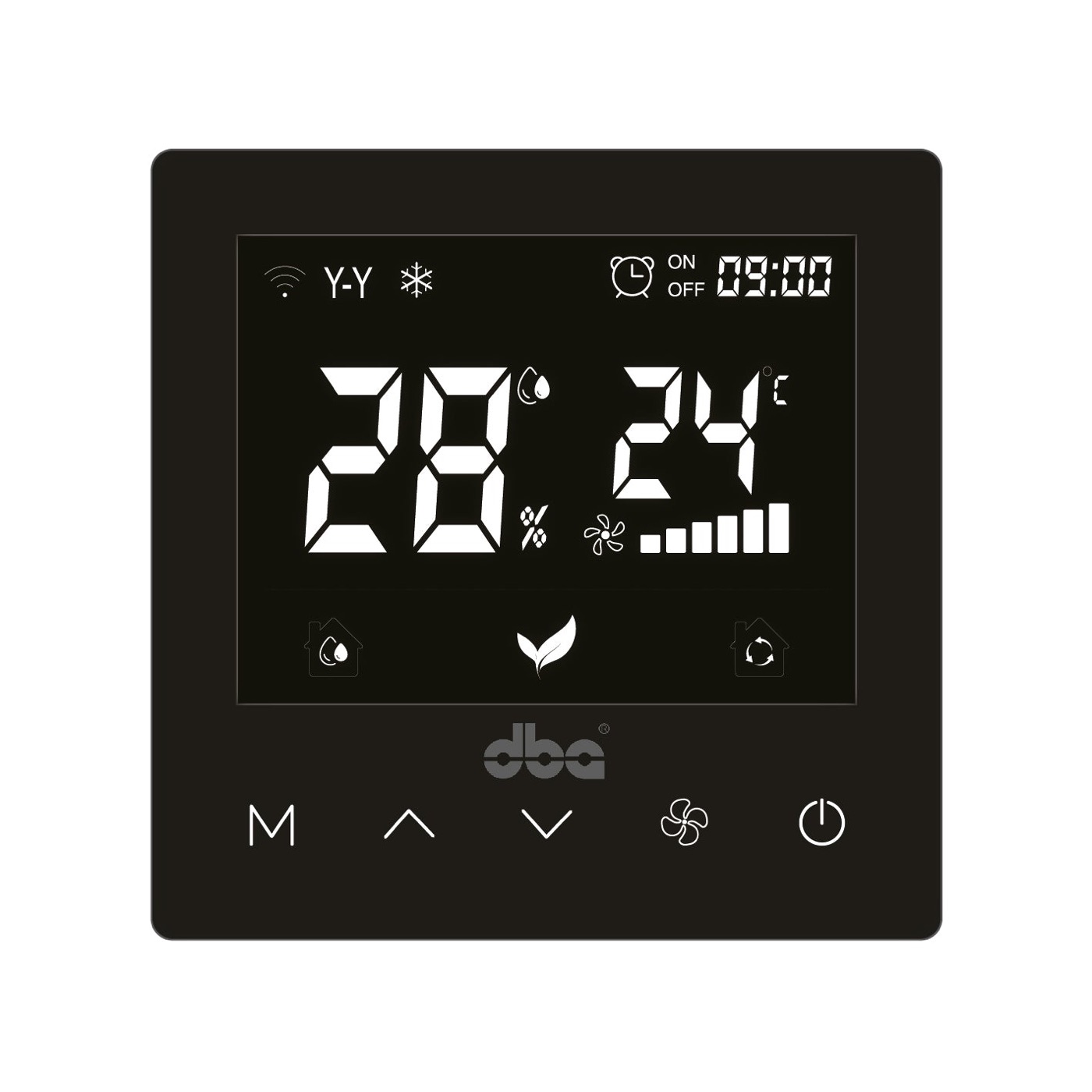

- WiFi app + RS485 Modbus (BMS / smart home)
- Built-in UV-C sterilisation light
- 730W rated / 940W max · R410A refrigerant
Full specifications
| Model | DBA-GEC68LD-HP |
|---|---|
| Dehumidifying Capacity(30℃ 80%RH) | 68L/Day |
| Dehumidifying Capacity(26.7℃ 60%RH) | 33L/Day |
| Cover Area | 800-1000sqft |
| Air Flow | 500m³/hr |
| Noise Level | 49dB |
| Voltage | 220-240V / 50hz |
| Rated Power | 730W |
| Max. Power | 940W |
| Rated Current | 3.4A |
| Max. Current | 4.6A |
| Refrigerant | R410A/400g |
| Operational Temperature | 5-40℃ |
| Air Outlet Size | ⌀146mm |
| Air Inlet Size | ⌀146mm |
| Pump Max. Head | 1.8m |
| Weight | 44kg |
| Dimension | L970 × W525 × H345mm |
Interested in the DBA-GEC68LD-HP?
Get a no-obligation quote. We'll confirm sizing, ducting options and pricing for your space.
Enquire on WhatsApp Call +65 6772 9962 info@drytech.sg
Free download
Commercial Ceiling Series Catalog
Full specifications, dimensions, installation drawings and performance data for the complete Commercial Ceiling range — including the DBA-GEC68LD-HP.
