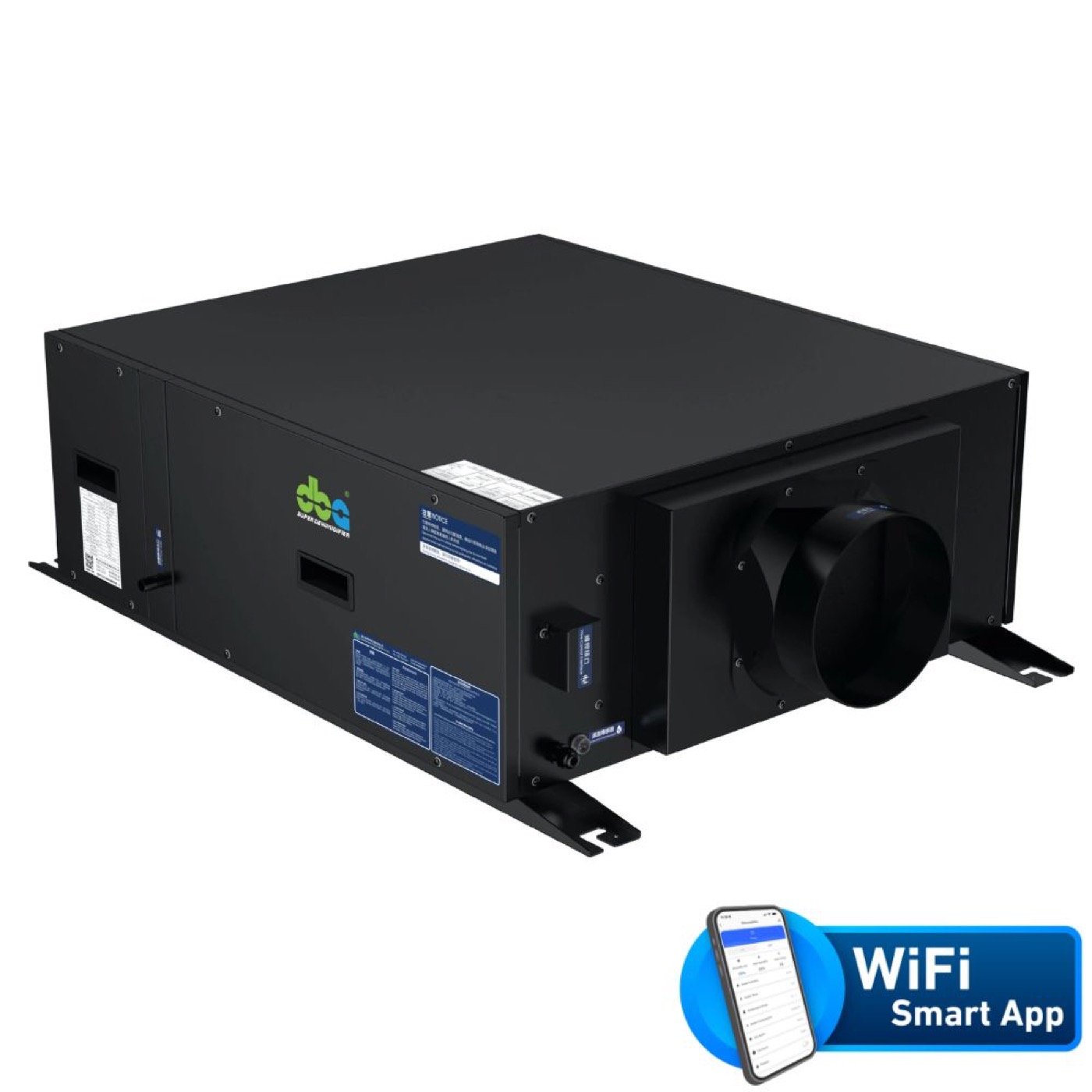

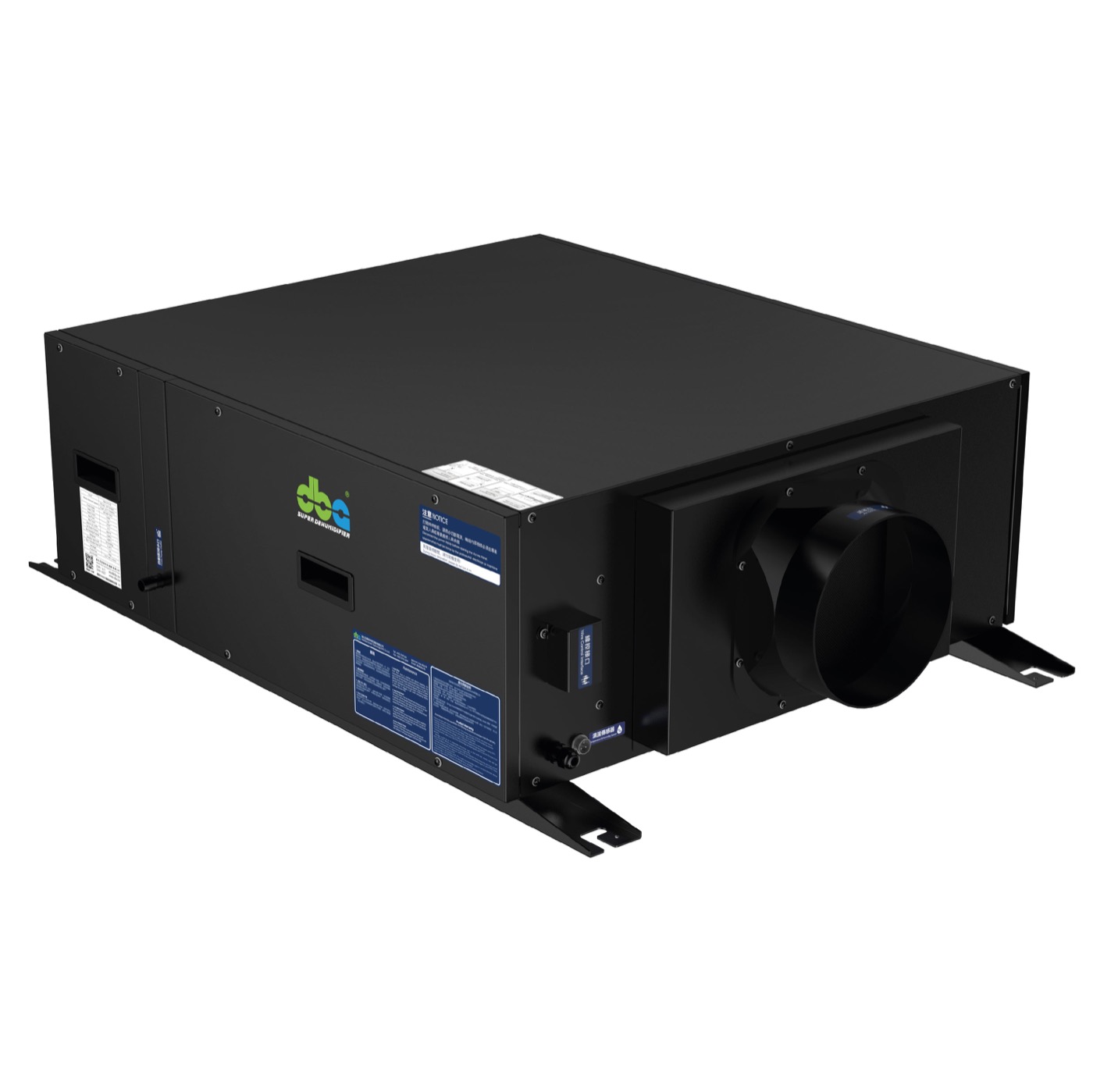

Ultra-Thin Ceiling 120 L/day
DBA-UTC120
Industrial-grade output in an ultra-slim ceiling unit
Commercial Industrial
About this unit
The highest-output Ultra-Thin ceiling unit, removing 120L per day from large commercial and light-industrial spaces. Despite its capacity, the 310mm profile fits within most standard false ceiling voids.
Highlights
- 120 L/day at 30°C 80%RH — 53 L/day at 26.7°C 60%RH
- 1075 × 746 × 310 mm (W×D×H), 64 kg
- 50 dB(A) noise level, 890 CMH airflow
- 1.8 m condensate pump lift
- 1,300–1,500 sq ft coverage

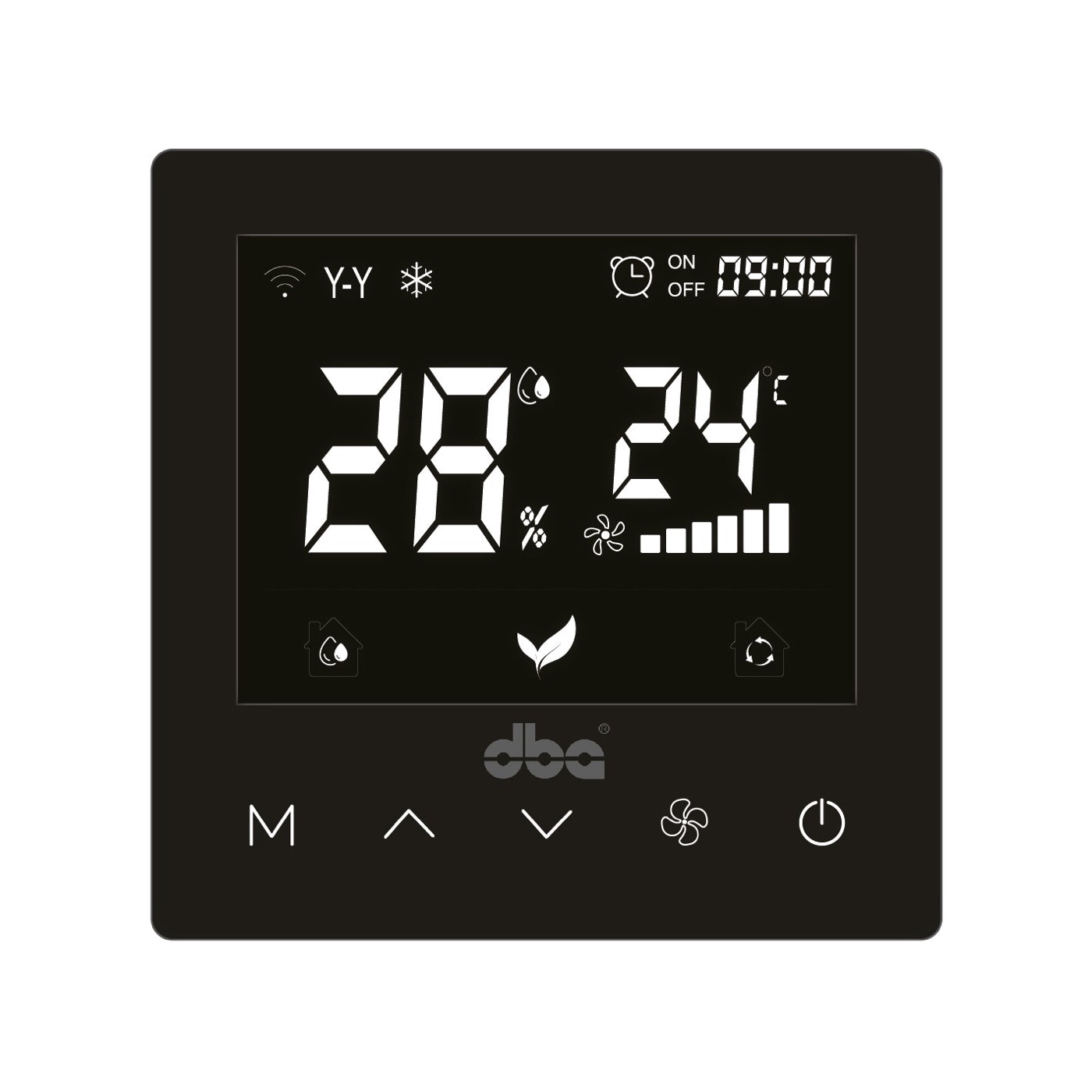

- Tuya WiFi app + RS485 Modbus (BMS / smart home)
- Built-in UV-C sterilisation light
- 1,010W rated / 1,600W max · R410A refrigerant
Full specifications
| Model | DBA-UTC120 |
|---|---|
| Dehumidifying Capacity(30℃ 80%RH) | 120L/Day |
| Dehumidifying Capacity(26.7℃ 60%RH) | 53L/Day |
| Cover Area | 1300-1500sqft |
| Air Flow | 890m³/hr |
| Noise Level | 50dB |
| Voltage | 220-240V / 50hz |
| Rated Power | 1010W |
| Max. Power | 1600W |
| Rated Current | 4.7A |
| Max. Current | 7.4A |
| Refrigerant | R410A/900g |
| Operational Temperature | 5-40℃ |
| Air Outlet Size | ⌀196mm |
| Air Inlet Size | ⌀196mm x 2 |
| Pump Max. Head | 1.8m |
| Weight | 64kg |
| Dimension | L1075 × W746 × H310mm |
Interested in the DBA-UTC120?
Get a no-obligation quote. We'll confirm sizing, ducting options and pricing for your space.
Enquire on WhatsApp Call +65 6772 9962 info@drytech.sg
Free download
Ultra-Thin Ceiling Series Catalog
Full specifications, dimensions, installation drawings and performance data for the complete Ultra-Thin Ceiling range — including the DBA-UTC120.
