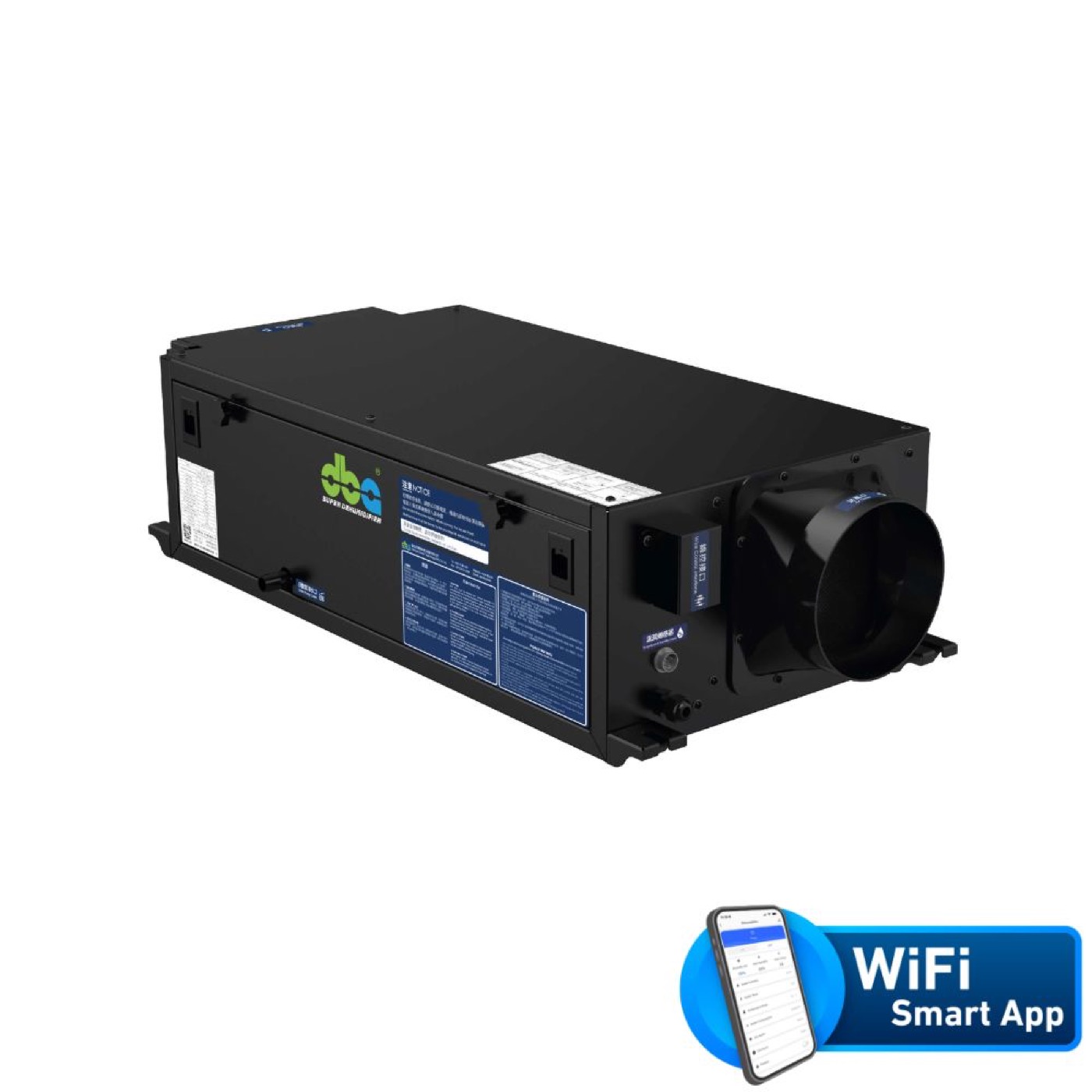

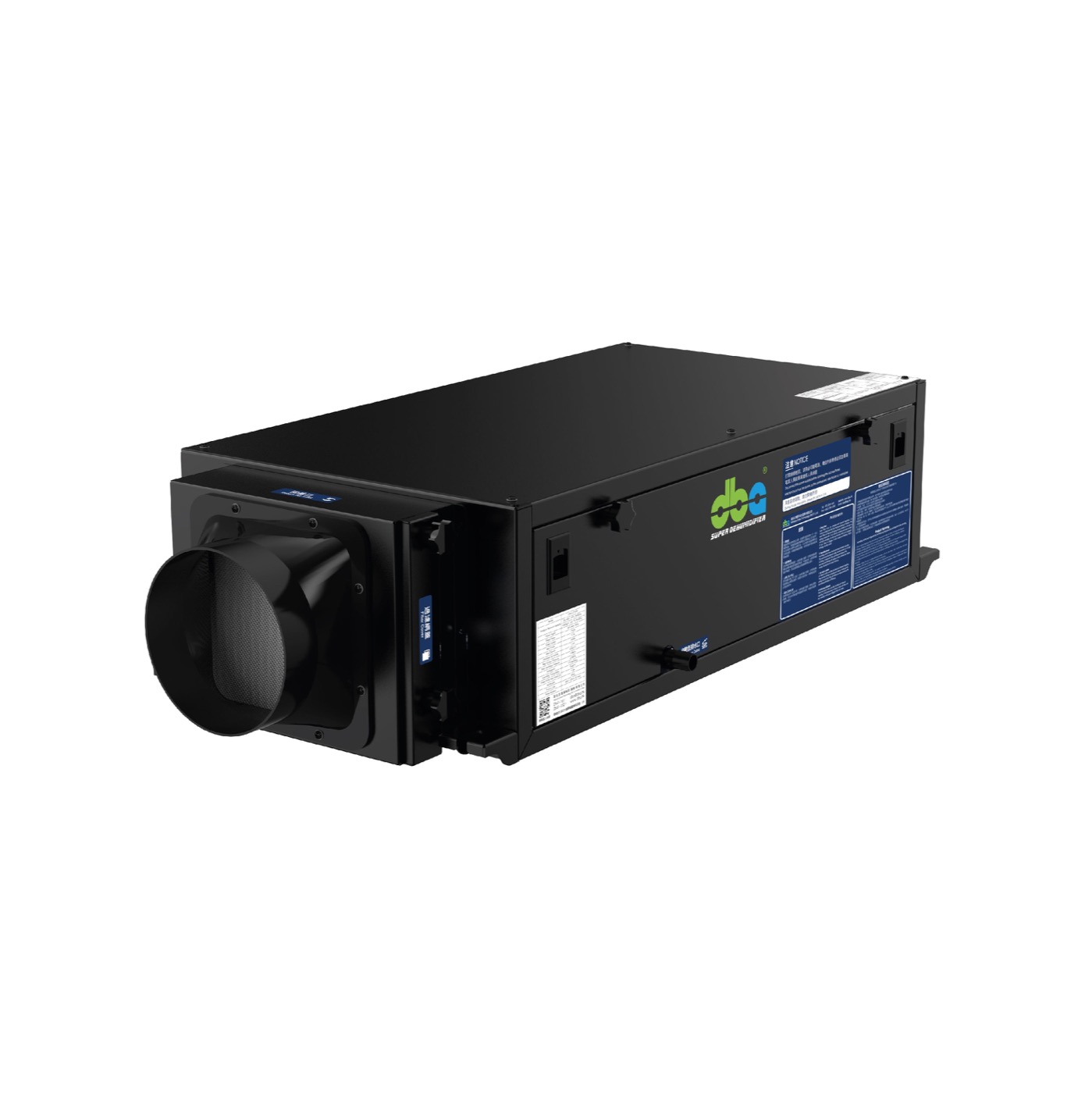

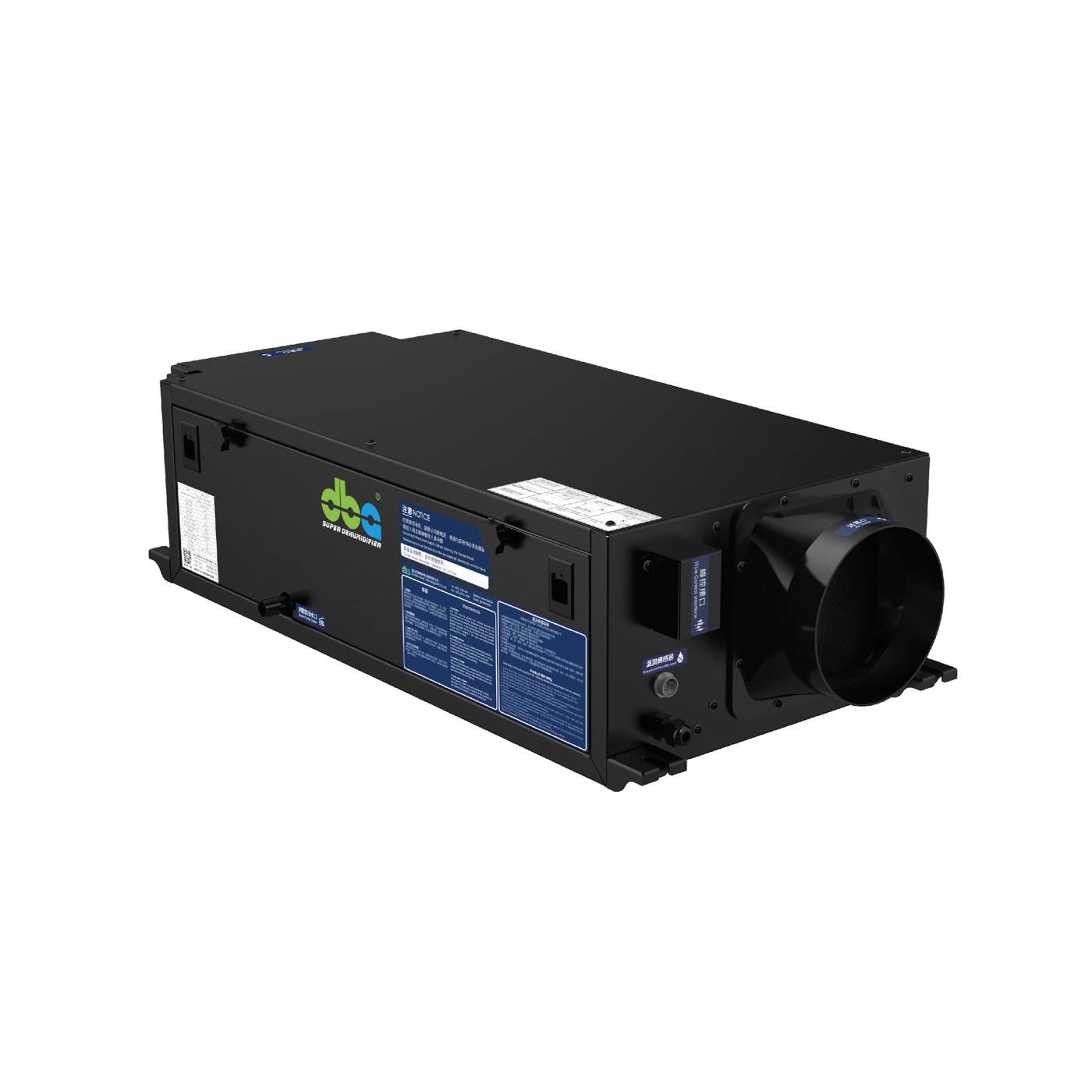

Ultra-Thin Ceiling 20 L/day
DBA-UTC20
The slim choice for homes and small offices
Residential Commercial
About this unit
The entry-level Ultra-Thin ceiling unit — 200mm slim, 28 kg, fits above any standard false ceiling. Removes 20L of moisture daily at 39 dB(A), serving homes and offices up to 400 sq ft. Built-in UV-C light, Tuya WiFi app, and RS485 Modbus included as standard.
Highlights
- 20 L/day at 30°C 80%RH — 9.9 L/day at 26.7°C 60%RH
- 865 × 376 × 200 mm (W×D×H) — ultra-slim 200mm profile
- 28 kg — fits inside standard false ceiling void
- 39 dB(A) noise level, 220 CMH airflow
- 1.8 m condensate pump lift — drain to any point
- 200–400 sq ft coverage

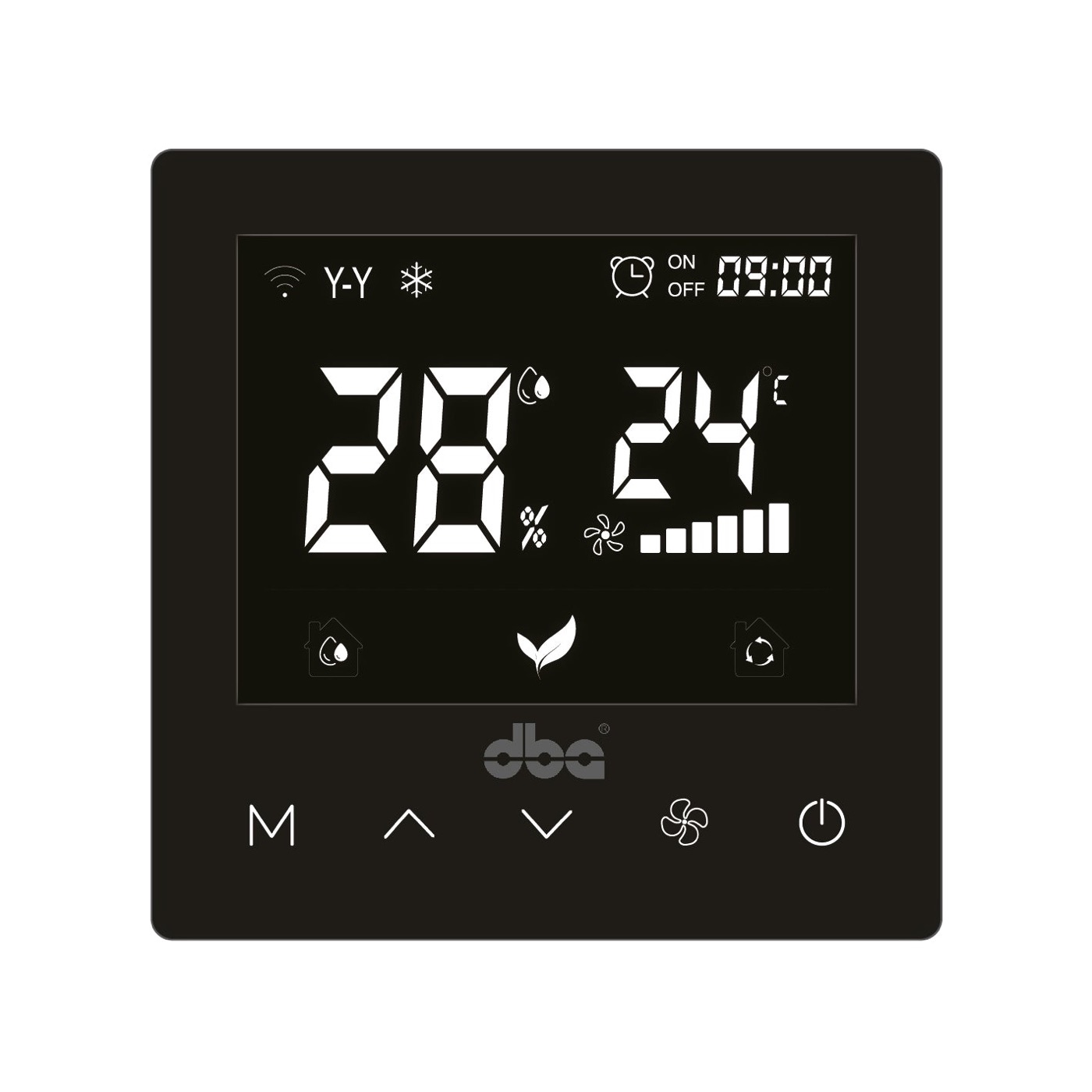

- Tuya WiFi app + RS485 Modbus (BMS / smart home)
- Built-in UV-C sterilisation light

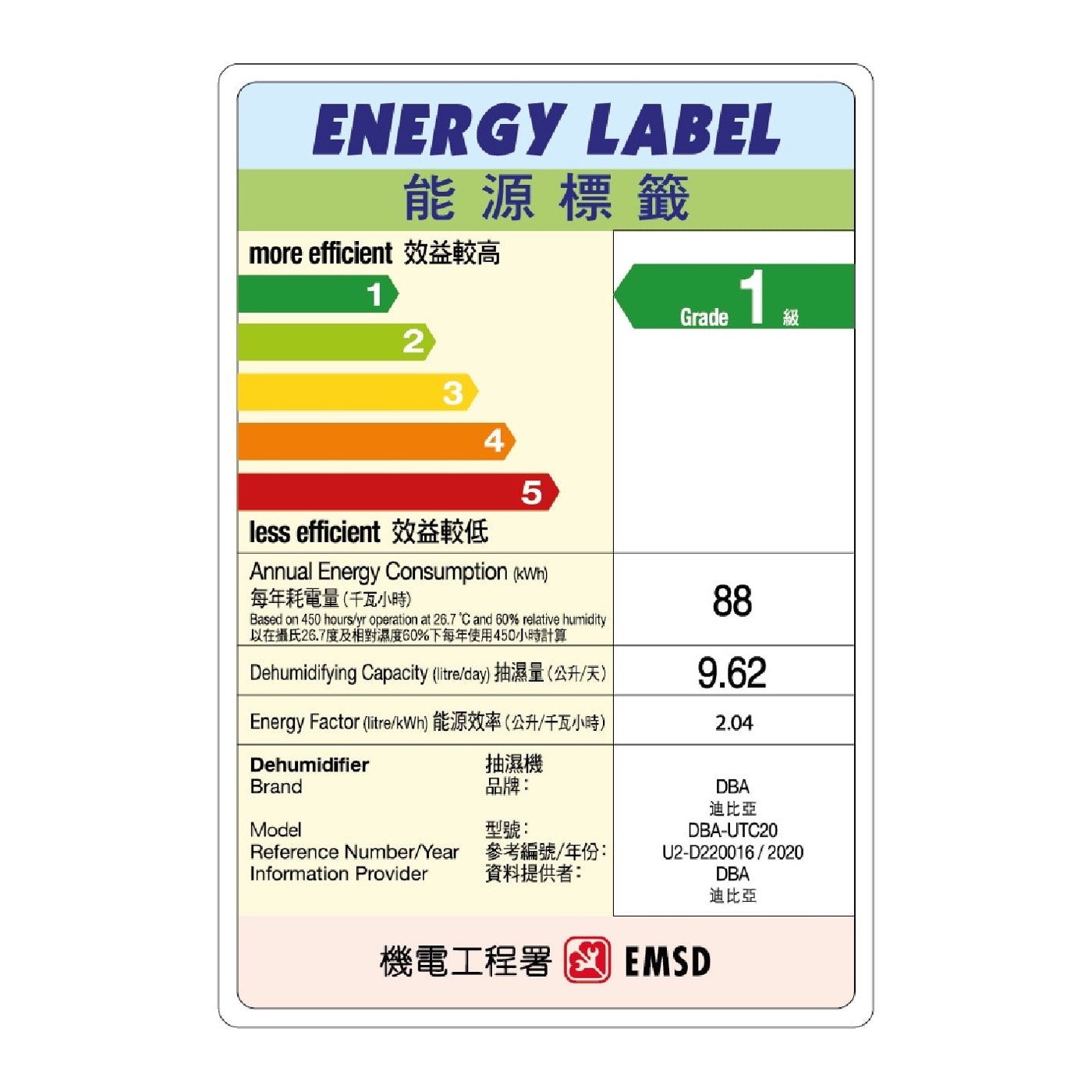

- 196W rated / 300W max · R134a refrigerant · Grade 1 Energy Label
Full specifications
| Model | DBA-UTC20 |
|---|---|
| Dehumidifying Capacity(30℃ 80%RH) | 20L/Day |
| Dehumidifying Capacity(26.7℃ 60%RH) | 9.9L/Day |
| Cover Area | 200-400sqft |
| Air Flow | 220m³/hr |
| Noise Level | 39dB |
| Voltage | 220-240V / 50hz |
| Rated Power | 196W |
| Max. Power | 300W |
| Rated Current | 1.0A |
| Max. Current | 1.35A |
| Refrigerant | R134a/230g |
| Operational Temperature | 5-40℃ |
| Air Outlet Size | ⌀146mm |
| Air Inlet Size | ⌀146mm |
| Pump Max. Head | 1.8m |
| Weight | 28kg |
| Dimension | L865 × W376 × H201mm |
Interested in the DBA-UTC20?
Get a no-obligation quote. We'll confirm sizing, ducting options and pricing for your space.
Enquire on WhatsApp Call +65 6772 9962 info@drytech.sg
Free download
Ultra-Thin Ceiling Series Catalog
Full specifications, dimensions, installation drawings and performance data for the complete Ultra-Thin Ceiling range — including the DBA-UTC20.
