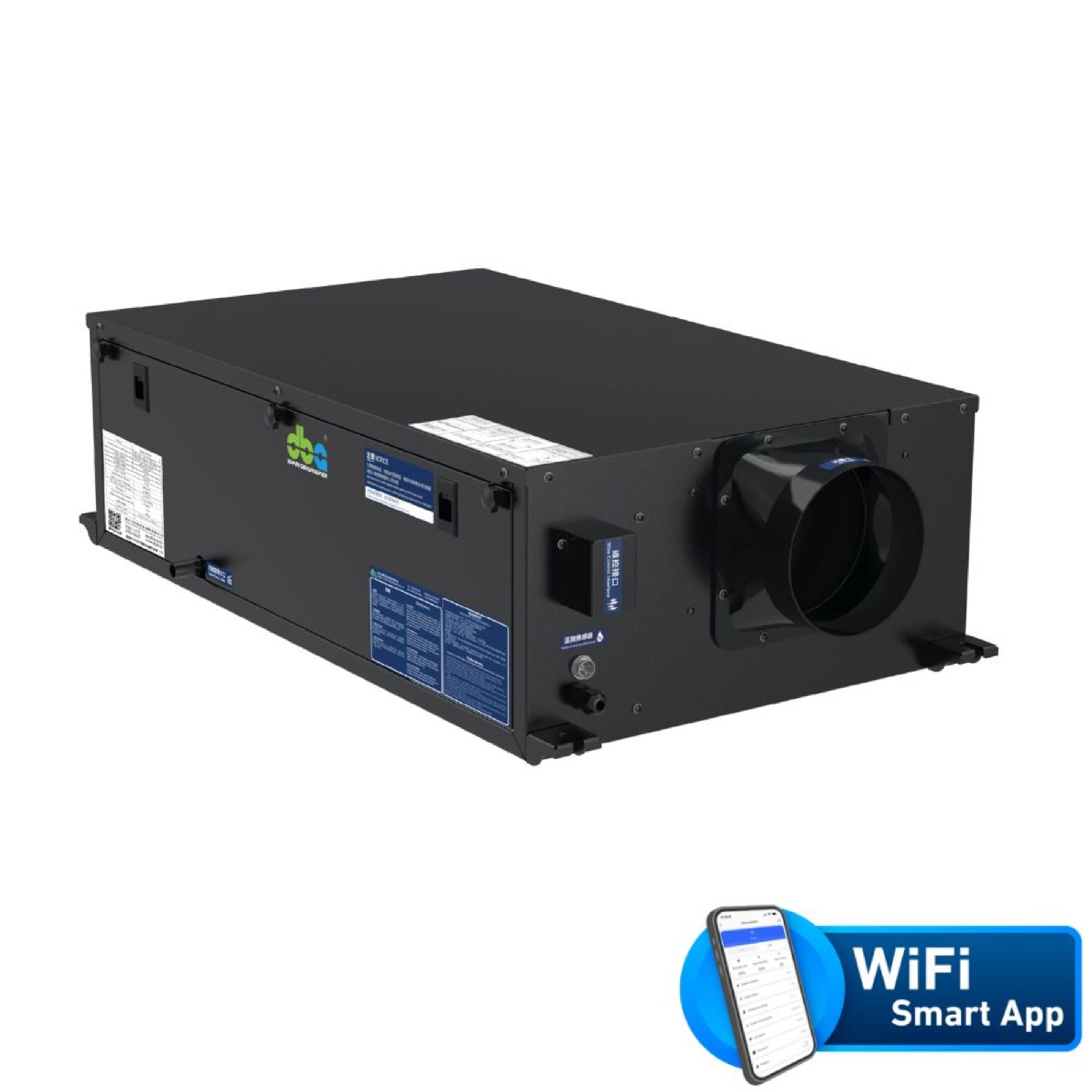

Ultra-Thin Ceiling 68 L/day
DBA-UTC68
Whole-floor humidity control in a single install
Residential Commercial
About this unit
A high-capacity Ultra-Thin ceiling dehumidifier for medium to large spaces. At 240mm, the UTC68 removes 68L per day while remaining entirely hidden above a false ceiling. One unit typically covers an entire Singapore apartment or small office.
Highlights
- 68 L/day at 30°C 80%RH — 42 L/day at 26.7°C 60%RH
- 1010 × 500 × 240 mm (W×D×H), 42 kg
- 48 dB(A) noise level, 500 CMH airflow
- 1.8 m condensate pump lift
- 800–1,000 sq ft coverage

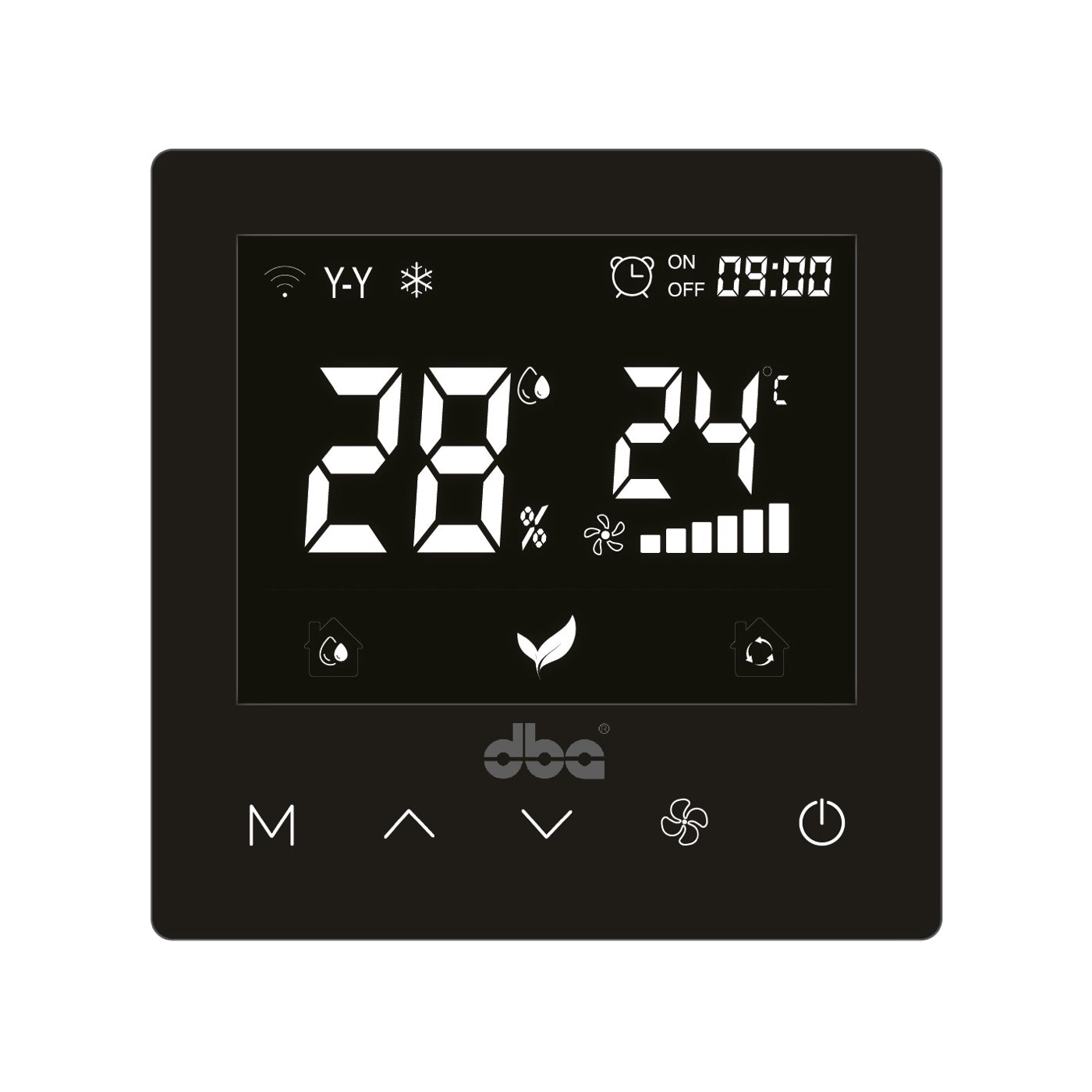

- Tuya WiFi app + RS485 Modbus (BMS / smart home)
- Built-in UV-C sterilisation light
- 880W rated / 1,250W max · R410A refrigerant
Full specifications
| Model | DBA-UTC68 |
|---|---|
| Dehumidifying Capacity(30℃ 80%RH) | 68L/Day |
| Dehumidifying Capacity(26.7℃ 60%RH) | 42L/Day |
| Cover Area | 800-1000sqft |
| Air Flow | 500m³/hr |
| Noise Level | 48dB |
| Voltage | 220-240V / 50hz |
| Rated Power | 880W |
| Max. Power | 1250W |
| Rated Current | 4.0A |
| Max. Current | 5.7A |
| Refrigerant | R410A/600g |
| Operational Temperature | 5-40℃ |
| Air Outlet Size | ⌀146mm |
| Air Inlet Size | ⌀146mm |
| Pump Max. Head | 1.8m |
| Weight | 42kg |
| Dimension | L1010 × W500 × H240mm |
Interested in the DBA-UTC68?
Get a no-obligation quote. We'll confirm sizing, ducting options and pricing for your space.
Enquire on WhatsApp Call +65 6772 9962 info@drytech.sg
Free download
Ultra-Thin Ceiling Series Catalog
Full specifications, dimensions, installation drawings and performance data for the complete Ultra-Thin Ceiling range — including the DBA-UTC68.
